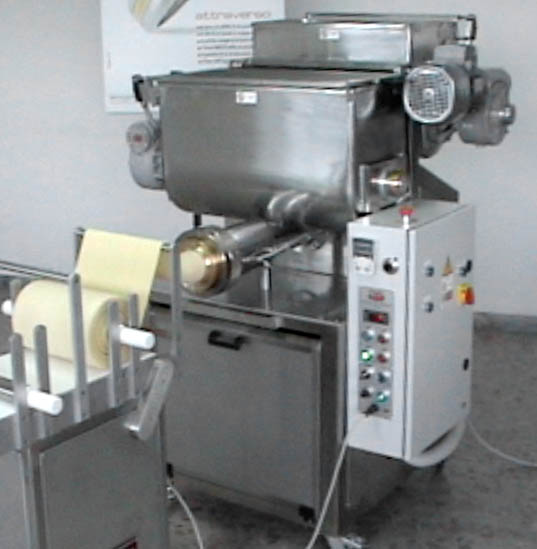

Extruder Press Pasta Machine mod. P/120

pressa impastatrcie automatica pasta fresca

bobinaore per sfoglia di pasta

Press dough to medium high output, for both food and ravioli machines cappelletti that produce pasta special formats, such as fusilli, gnocchi sardi, etc.. Can be brought into line with machines and cannelloni noodles as it is equipped with inverter to regulate an output rate of the product. Equipped with cooling water on the tested controlled by thermostat, a group of short cut pasta, dryer product collection. Automatic reversal of the pool feed. Trees of batter removable tanks dough and feeding capacity of 40 kg with rounded edges for a perfect cleaning. Stainless steel construction. Complies with CE.

Motors: Volt 230/400 three phases Power: kW 5
Output KGs/h: 50 about of sheet of pasta
Dimensions: mm 1100 x 950 x 1750 Weight: KGs 460

pasta machine



Cappelletti Agnolotti pasta machine mod. RC/4-N

Cappelletti and agnolotti machine – with double mould shape cappelletto/agnolotto PN02 -hourly production of KGs 50 about - the change from one shape to another is possible with the machine in motion by the simple rotation of a lever - possibility to change moulds (tortellone excluded) - equipped with anti-accident devices. Marking CE

Motors: Volt 220/380 three phases
Power: kW 2,6
Output KGs/h: 80 about (pounds 177)
Dimensions: mm 860 X 860 X 1585 H
Weight: KGs 350 about
Sheet width: mm 262 (inches 10,3)

pasta machine



Automatic Sheeter mod. SI/280-400

si280

pasta machine

sheetersStacking and cutting machine, ideal to replace the hand process for sheet of pasta, standard width is mm 280-400, it is designed to roll, to make a dusting, to cut and to overcome the pasta sheet layers automatically at all, moreover this machine is suitable to deliver tagliatelle or lasagne of different sizes and lengths by only fitting a cutting equipment, this machine not require more use of manpower allowing the unit operator to perform other tasks when the unit is running, it deposits both lasagne and long cuts directly into a designated storage or retail container equipped with an automatic counter, the machine can be adjusted to stop at a pre-designated number of sheets, it is capable of cutting lasagne 3,9” x 5,5", at the pasta sheet stack completion the machine stops automatically mod. SI280-400 do not require any maintenance procedure. Machine in stainless steel version. Marking CE

MODEL
SI/280
SI/400
Dimensions
810x1300x1330
930x1300x1330
Weight kg
270 c.
290 c.
prod/h kg
80 c.
100 c.
Sheet width mm
280
400
Power KW
2,1
2,1
Motors volt
220/380-3F+N
220/380-3F+N


Ravioli pasta machine mod. RN/170-SC

pasta machine


Ravioli machine with separated product - hourly production of KGs 120-150 about -discontinuous filling because the machine need to be stopped before add filling - with double sheet of pasta -ideal to produce ravioli with either soft fillings (cheese and/or vegetables) or with meat, in various consistencies and sizes - equipped with one mould shape Q4 - possibility to change ravioli moulds of different shape and size (square, triangular, round, half-moon) - this machine is equipped with anti-accident devices, stainless steel version. Marking CE



Motors: Volt 220/380 three phases Power: kW 1,7
Sheet width: mm 170 (inches 6,69)
Output KGs/h: 120/150 about (pounds 266/333)
Dimensions: mm 570 x 730 x 1850 H Weight: KGs 180 about



Gnocchi machine with 6 holes model GN/6-N



Gnocchi machine with 3 holes - hourly production of KGs 150 about - the product can be smooth or striated, as desired - of small, medium or large shape - gnocchi may be formed well hollowed or cubed, as desired -continue feeder - equipped with anti-accident devices. Marking CE

Motors: Volt 220/380 three phases
Power: kW 1,6
Output KGs/h: 150 about (pounds 166)
Dimensions: mm 600 x 700 x 1500 h
Weight: KGs 200 about



pasta machine


Pasteurizers mod. PS/350

Pasteurizer of 350 centimetres long and wide 50 centimetres - ideal to extend the shelf life of fresh or filled pasta: tortellini, ravioli and other shapes of filled pasta -entirely built in stainless steel - its heater is gas-functioning (methane or GPL) with power of kW 3,4 - capacity of KGs 80 about (pounds 177) - equipped with two frames in stainless steel to keep product - temperature and belt speed are adjustable -equipped with anti-accident devices. Marking CE

pasta machine

Motors: Volt 220/380 three phases + N
Power: kW 3,4 (with gas-functioning)
Burner power: kcal/h 38.000
Output KGs/h: 80 about (pounds 177)
Dimensions: mm 3500 X 1000 X 1700 H
Weight: KGs 300 about
Belt width: mm 500 (inches 19,6)

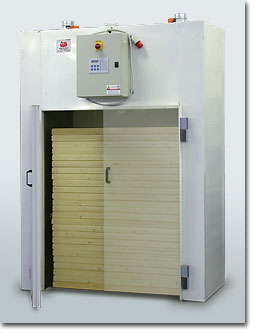

Dryer mod. VR/50

The static desiccator is used to prepackage and desiccate long, short and stuffed pasta types and to dry pasteurized pasta prior to packaging.
The structure, made of insulated polyurethane foam panels, provides perfect thermal and acoustic insulation.
The internal and external lining is available as painted sheet or AISI 304 stainless steel sheet. The control system allows to adjust temperature, humidity and production cycles.
Air heating is obtained via resistances or sets of hot water heat exchangers.
All desiccators are equipped with stainless steel trolleys and 600x1200 fir-wood looms with polyester netting.

MODELLO
VR/24
VR/25
VR/50
VR/100
No. of trolleys
1
2
4
Width
1520
1750
1750
1750
Height
2080
2400
2400
2400
Depth
840
840
1700
2900
No. of resistances
3
3
6
9
KW resistances
6
6
9
12
Machine weight (kg)
150
200
320
480
